**Features and benefits:**
The Charge Core can charge up to 7.4 kW on a single-phase circuit and up to 22 kW on a three-phase circuit. The charger is continuously updated with the latest functionality.

- Easee Link™ local load and phase balancing.
- Automatic queue system.
- Permanent locking of the Type 2 cable.
- Integrated RFID reader (NFC / ISO 14443 and MIFARE Classic®).
- Universal, fits all types of electric cars and power supplies.
- Full control with Easee App or third party integrations.
- Manufacturer's warranty 3 years in EU.
- Built-in residual current device (RCD).*

_*Integrated residual current device of Type A 30 mA AC approved according to EN 60947-2, as well as 6 mA
residual current detection device (RDCDD) according to IEC 62955, 9.9. The RCD cuts the current if a residual current exceeding 6mA DC or 30mA AC is detected. The earth fault circuit breaker is automatically tested between each charging occasion or at least every 24 hours. To manually start the RCD test, use the Installer App._

Product description

- Manufacturer: Easee

EFUEL's article number / SKU
- Easee Charge Core - Black [E329]
- Easee Charge Core - White [E540]
- Easee Charge Core - Anthracite Gray [E541]
- Easee Charge Core - Red [E542]
- Easee Charge Core - Blue [E543]

**Technical specification:**

**Connection Point Protection**
- Integrated RCD type A 30 mA AC according to EN 60947-2.
- Integrated RDC-DD 6mA DC according to IEC 62955, 9.9.
- Temperature monitoring.
- Overload protection.
- Degree of protection: IP54 (the back is IP22 without cover).
- Impact resistance: IK10.
- Insulation class: I.
- Overvoltage category III.
- Theft protection.

**Complies with the following regulations**
- 2014/53/EU (RED).
- 2011/65/EU (RoHS).
- 2014/30/EU (EMC).
- 2014/35/EU (LVD).
- See DoC for details at easee.com/doc

**Charging power**
- 1-phase: 1.4 kW (6 A) - 7.4 kW (32 A).
- 3-phase TN: 4.1 kW (6 A) - 22 kW (32 A).
- 3-phase IT: 2.4 kW (6 A) - 12.7 kW (32 A).

**Electrical Specifications**
- Voltage: 3x 230 V / 400 V AC (±10%).
- Mains frequency: 50 Hz.
- Power supply: TN, IT, TT.
- Connection point: Type-2 socket.
- Automatic adjustment of charging speed based on available power.
- Automatic phase balancing.
- Built-in energy meter (±2%).
- Unlimited number of chargers per installation.

**Connection**
- Wi-Fi 2.4 GHz b/g/n.
- Bluetooth BLE 4.2.
- Built-in eSim (LTE Cat M1).
- OCPP 1.6.
- Easee LinkRF (between charger / between charger and Equalizer).
- Built-in RFID/NFC reader for access control.
- Easee App for control and monitoring.

**Dimensions and weight:**
- Dimensions (mm): H: 256 x W: 193 x D: 106.
- Wall mounting (mm): c/c H: 160 x W: 125.
- Working temperature: -30 °C to +40 °C.
- Weight: 1.5 kg.

**Installation**
- Automatic detection of power grids (TN, IT, TT).
- Circuit breaker: Max 80A.
- Max number of chargers per circuit: 101 pcs
- The size of the fuse must be configured by an electrician in the back plate of the charger using the Easee Installer App.
- Wire cross section: up to 16 mm2 (one cable) / up to 10 mm2 (parallel connection).
- Cable diameter: 8–22 mm.
- Final tightening: 5 Nm.
- Unsheathing length: 12 mm.

Specifications

**Product sheet:**

[Easee Charge Core - Product sheet (EN)](https://efuel-cdn.imgix.net/cms/EN_Charge_Core_Productsheet_V1_01_0b15a32363/EN_Charge_Core_Productsheet_V1_01_0b15a32363.pdf)

[Easee Charge Core - Brochure Commercial Charging (EN)](https://efuel-cdn.imgix.net/cms/EN_Commercial_Charging_Brochure_V1_01_5767202986/EN_Commercial_Charging_Brochure_V1_01_5767202986.pdf)

[Easee Charge Core - Installer's Guide (EN)](https://efuel-cdn.imgix.net/cms/EN_Charge_Core_IG_75d971a5f7/EN_Charge_Core_IG_75d971a5f7.pdf)

[Easee Charge Core - User Guide (EN)](https://efuel-cdn.imgix.net/cms/EN_Charge_Core_UG_f1de36f027/EN_Charge_Core_UG_f1de36f027.pdf)

[Easee Charge Core - EU Declaration of Conformity (DOC) (EN)](https://efuel-cdn.imgix.net/cms/07a_Declaration_of_Conformity_Charge_Core_f707350d14/07a_Declaration_of_Conformity_Charge_Core_f707350d14.pdf)

Material

**Easee Charge Core** is a scalable solution to promote the deployment of multiple charging points in commercial buildings and apartment complexes. Continuous updates ensure that your charger always has the latest functionality. The Charge Core is equipped with advanced features such as Easee Link™ for local load and phase balancing, an automatic queuing system and permanent locking of the Type 2 cable, making it the perfect solution for both condominiums and commercial environments. In addition, you can easily monitor and control charging via the Easee App or integrate it with third-party systems for maximum flexibility. Explore an intelligent, scalable and cost-effective charging solution that is ready to meet the demands of the future.

- **Phase balancing:** The product offers a unique phase balancing that automatically selects between 1-phase and 3-phase charging based on available capacity in each phase (dynamic load balancing against the property via [Equalizer](https://www.efuel.eu/products/load-balancers/equalizer-home-han-port). This makes it possible to utilize close to 100% of the available energy, which contributes to efficient charging over time.

- **Safety:** The charger has an integrated residual current device (RCD) that self-tests between each charging session and at least once every 24 hour period. Using more than forty sensors inside the charger, it continuously monitors for faults and abnormal changes in currents, voltages, temperatures and humidity, both during charging and in standby mode. In the event of an unexpected temperature increase, the charging box will automatically shut down and warn you if a certain safety limit is reached.

- **Easy installation:** With a built-in and approved ground fault circuit breaker, the installer can easily parallel connect the charging stations on the same circuit, saving both time and money. The Easee Installer app allows installers to manage chargers directly from their phone. The app offers a flexible solution for adding circuits and backplates to new and existing charging facilities, simplifying the process.

- **Scalable:** The Easee Ready backplate enables easy expansion of the charging infrastructure by clicking additional chargers into place. This allows for smooth growth for various applications, from residential to commercial use, and ensures that future needs are met.

Are you an installer and would you like to become a reseller of Easee Charge Core? The charging box is designed to deliver maximum efficiency and can charge up to 22kW. Continuous updates ensure that your charger always has the latest functionality. The Charge Core is equipped with advanced features such as Easee Link™ for local load and phase balancing, an automatic queuing system and permanent locking of the Type 2 cable, making it the perfect solution for both condominiums and commercial environments. In addition, you can easily monitor and control charging via the Easee App or integrate it with third-party systems for maximum flexibility. Explore an intelligent, scalable and cost-effective charging solution that is ready to meet the demands of the future.

Easee Charge Core | Charging box for Housing societies and Companies

Color

Easee Charge Core

Charge Core

Black

White

Anthracite Grey

Blue

Features and benefits:

**Always up to date**
The chargers are continuously updated with the latest features through Easee software updates. This way you know you have purchased a reliable and future-proof product for your customer.

**Cost-effective and scalable**
Predictable and cost-effective installation. Configure and set up in just minutes. Load and phase balance up to three Easee chargers in one home.

**All-in-one charger**
The chargers support all EVs, phases and grids. This means customers don't have to worry about compatibility if they get a new electric car or upgrade their home electrical system.

**Powerful**
The chargers can charge up to 22 kW on 3-phase circuits with a Type 2 charging cable. Distributing the charging load across all 3 phases allows for faster charging when required.

**Reliable local control**
The Bluetooth feature allows the customer to control and monitor their chargers locally, without relying on cloud services or internet connection.

**Configuration**
Quick installation and configuration is done via the Easee Installer App by programming the backplate via NFC or Bluetooth technology.

**Functional design**
With award-winning Scandinavian design, the chargers are easy to use and house many practical features:

- Interchangeable charging unit that is easy to upgrade or replace when needed.
- The charger has a 45 degree angled type 2 socket which makes it self-draining and ensures that the cable protrudes less from the wall.
- Passive thermal cooling ensures maximum power without noisy fans.
- Charge Up is compatible with previous models, Easee Home and Charge Lite.

**General:**

- Manufacturer: Easee
- EFUEL part number / SKU: E653-E657
- Manufacturer warranty: 5 years


**Technical information:**

- Dimensions (mm): H: 256 × W: 193 × D: 106.
- Wall mounting (mm): c/c H: 160 x W: 125.
- Operating temperature: -30 °C to +40 °C.
- Weight: 1,5 kg.


*Connectivity:*

- Wi-Fi 2.4 GHz b/g/n.
- Bluetooth BLE 4.2.
- OCPP 1.6J
- Easee LinkRF (between charger / between charger and Equalizer).
- Built-in RFID/NFC reader for access control.
- Easee App for control and monitoring.


*Mains and fuses:*

- Voltage: 3x 230 V / 400 V AC (±10%).
- Mains frequency: 50 Hz.
- Mains: TN, IT, TT.


*Charging power for Charge Up:*

- 1-phase: 1.4 kW (6 A) - 7.4 kW (32 A).

- TN 3-phase: 4.1 kW (6 A) - 22 kW (32 A).

- IT 3-phase: 2.4 kW (6 A) - 12.7 kW (32 A).

- Chargers per location: 3.

- Connection point: Type-2 socket (Mode 3)

- Automatic adjustment of charging speed based on available current.1

- Automatic charging with solar energy.

- Automatic phase balancing.



*Installation:*

- Automatic detection of mains supply (TN, IT, TT).
- Circuit breaker: Max 40A.
- The size of the fuse must be configured by an electrician in the backplate of the charger using the Easee Installer App.
- Wire cross-section: up to 16 mm2 (single cable) / up to 10 mm2 (parallel connection).
- Cable diameter: 8-22 mm.
- Final tightening: 5 Nm.
- Stripping length: 12 mm.


*Protection for connection point:*

- Integrated earth leakage circuit breaker type A according to regulation 2014/53/EU (RED).
- 30 mA AC approved according to EN 60947-2, and according to regulation 2011/65/EU (RoHS).
- 6 mA residual current device according to regulation 2014/30/EU (EMC).
- (RDC-DD) according to IEC 62955, 9.9. according to Regulation 2014/35/EU (LVD).
- Temperature monitoring (See DoC for more information at easee.com/doc)
- Overload protection.
- Degree of protection: IP54 (backplate is IP22 without front cover).
- Impact resistance: IK10
- Overvoltage category III.
- Theft protection.

**Product sheet:**

[Product sheet (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Up_Productsheet_621bfee933/EN_Charge_Up_Productsheet_621bfee933.pdf>)

**EU Declaration of Conformity**
[Easee Charge Up - EU Declaration of Conformity (DOC) (EN)](https://efuel-cdn.imgix.net/cms/EN_Easee_Charge_Up_CE_declaration_6a89d0121b/EN_Easee_Charge_Up_CE_declaration_6a89d0121b.pdf)

**Manuals:**
[Manual for installers (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Up_IG_V1_02_d8a30f50dd/EN_Charge_Up_IG_V1_02_d8a30f50dd.pdf>)

[Manual for end users (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Up_UG_V1_00_1c92ded625/EN_Charge_Up_UG_V1_00_1c92ded625.pdf>)

[Brochure (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Up_Brochure_f24389ab79/EN_Charge_Up_Brochure_f24389ab79.pdf>)

**Marketing material:**Find sales material for Easee Charge Up [here](<https://drive.google.com/drive/folders/1at4YEgF74M473nVNOljc6ArEJLtqX4Dy?usp=drive_link>)

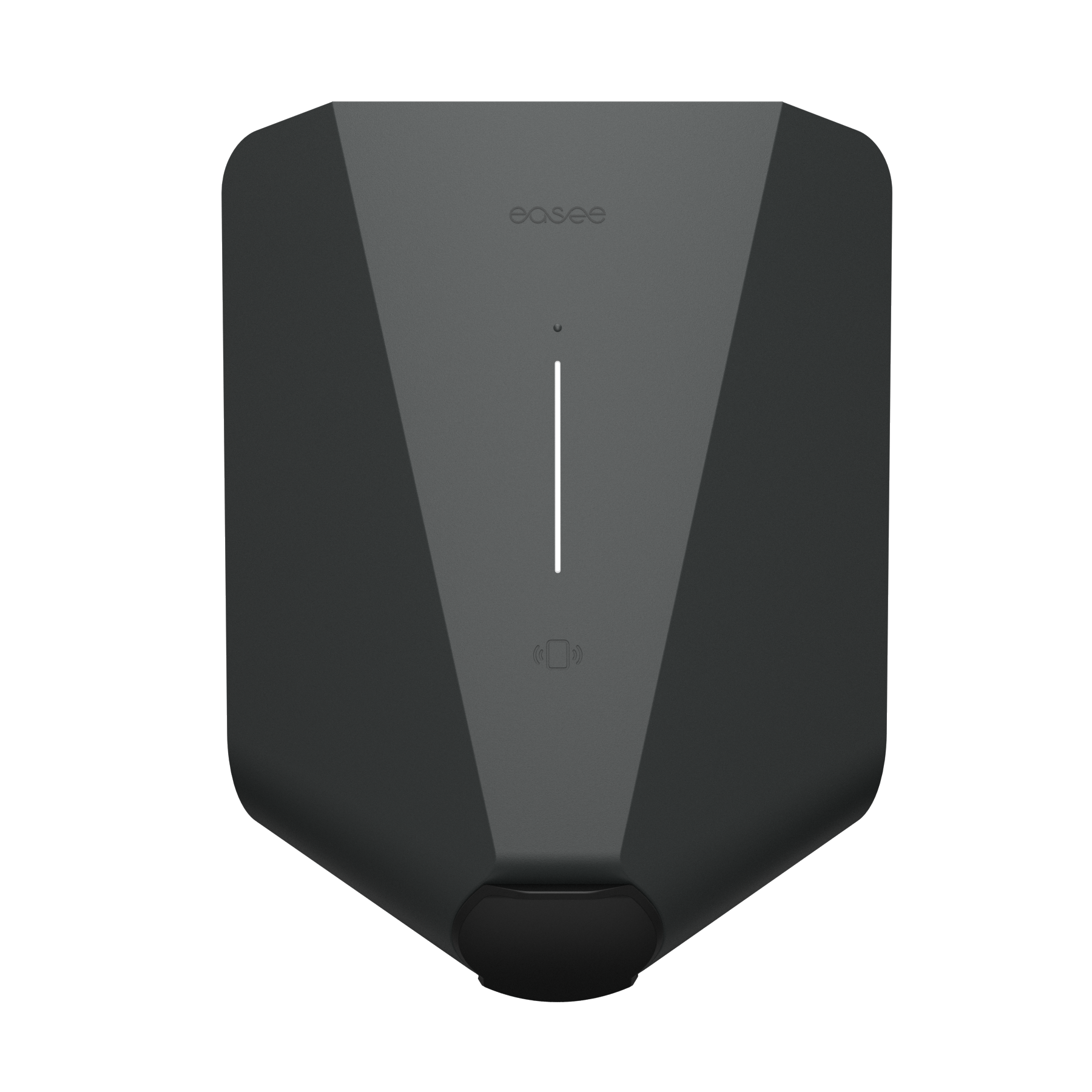

**Easee Charge Up** is intelligent and adapts to all electric vehicles, voltages and grids. reliable and future-proof EV chargers for your customers' home charging needs. Charge Up supports all EVs, phases and grids and delivers maximum available power. Its advanced smart safety features ensure safe charging, all the time.

- Charge up to 22 kw
- Built-in RCD & AC/DC protection
- Local load and phase balancing
- Dynamic load balancing via Easee Equalizer
- Tested by TÜV Rheinland
- Easy installation



**Smart safety**Safety is at the heart of everything Easee does. The charger is equipped with advanced temperature sensors, self-testing RCDs and provides you with critical fault notifications, meaning you are guaranteed safety and the latest features.

**Advantages**
- Charge up to 22kW on 3-phase or 7.4kW on 1-phase.
- Integrated type A RCD (only fuse needed).
- Free 4G connectivity.
- Install up to three chargers on one circuit.
- The charger is continuously updated with the latest features.
- Easee Link™ Local load and phase balancing.
- Possibility to lock the type 2 cable.
- Integrated RFID reader
- Universal, fits all types of electric cars and power supplies.
- Full control with the Easee app or third-party integrations.
- Manufacturer's warranty: 5 years in accordance with Easee warranty procedure.


**Larger order? Request a quote via partner@efuel.se**

Easee Charge Up is intelligent and adapts to all electric vehicles, voltages and grids. reliable and future-proof EV chargers for your customers' home charging needs. Charge Up supports all EVs, phases and grids and delivers maximum available power. Its advanced smart safety features ensure safe charging, all the time.

- Charge up to 22 kw
- Built-in earth leakage breaker & DC protection
- Easy installation
- Dynamic load & phase balancing
- TÜV certified at group level for maximum safety

Smart safety
Safety is at the heart of everything Easee does. The charger is equipped with advanced temperature sensors, self-testing RCDs and provides you with critical fault notifications, meaning you are guaranteed safety and the latest features.

Advantages of the Charge Up
- Charge Up can charge up to 22 kW on a three-phase circuit and up to 7.4 kW on a single-phase circuit.
- Install up to three chargers at one residence.
- The charger is continuously updated with the latest features.
- Easee Link™ Local load and phase balancing.
- Automatic queuing system.
- Permanent locking of the Type 2 cable.
- Integrated RFID reader (NFC/ISO 14443 and MIFARE Classic®).
- Universal, fits all types of electric cars and power supplies.
- Full control with the Easee app or third-party integrations.
- Manufacturer's warranty: 5 years in accordance with Easee warranty procedure.

**Larger orders? Request a quote via partner@efuel.se**





Easee Charge Up Charging Box | Become a Reseller

Färg

Easee Charge Up

Charge Up

Svart

Antracit Grå

Mörkblå

Röd

**General:**
- Manufacturer: Charge Amps
- Manufacturer's warranty: 3 years

_Charge Amps Aura RCD:_
- Manufacturer's article number: 131502
- EFUEL's article number / SKU: E527

_Charge Amps Aura RCD 4G:_
- Manufacturer's article number: 131503
- EFUEL part number / SKU: E528

**Technical information:**
- Charging current: 6–32 A, single or three phase per outlet.
- Voltage: 230/400 V.
- Charging standard: Mode 3.
- Operating temperature: – 35 °C to + 45 °C.
- Identification: RFID.
- Internet connection: Wifi, LAN and 4G* (applies to some models).
- Communication protocol: OCPP 1.6J (applies to some models).
- RCD:
 - Charge Amps Aura with product numbers 130908, 130909, 101010 & 101010-LTE: Separate DC residual current protection. RCBO type A that meets EN 61009-1 and EN 61009-2-1 is built into the charging station for each outlet.
 - Charge Amps Aura with product number 131502 & 131503: Built-in RCD Type-B protection complying with IEC 60947-2: AC: 30 mA, DC: 6 mA.
- Meter: Three-phase voltage, current and output power (equivalent to the EU directive on measuring instruments 2014/32/EU).
- IP class: IP 55.
- IK class: IK 10.
- Outlet: Type 2, 2 × 22 kW simultaneously.
- Dimensions (W x D x H): 367 x 159 x 405 mm.
- Weight: 10 kg.
- Specifications of Charge Amps Aura 4G*:
 - RF technology: GSM, GPRS, EDGE, UMTS/HSPA+, LTE.
 - Peak RF output power: 32 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE.
 - SIM card: Standard SIM.

**Certification:**
- ISO15118-prepared

Specifications

**Product sheet:**

[Product sheet (EN)](https://efuel-cdn.imgix.net/cms/Charge_Amps_product_sheet_aura_ENG_240411_ee67aeb850/Charge_Amps_product_sheet_aura_ENG_240411_ee67aeb850.pdf)

**Manuals:**

[Installation manual (EN)](https://efuel-cdn.imgix.net/cms/Aura_RCD_Installation_Manual_rev_01_en_bb42d21a4a/Aura_RCD_Installation_Manual_rev_01_en_bb42d21a4a.pdf)

[User Manual (EN)](https://efuel-cdn.imgix.net/cms/Aura_RCD_User_Manual_rev_01_en_2f8011ab2c/Aura_RCD_User_Manual_rev_01_en_2f8011ab2c.pdf)


**Videos:**

[Installation video (EN)](https://www.youtube.com/watch?v=49t8d9uKtw4&t=4s)

Charge Amps Aura is compatible with OCPP and can be connected to any cloud service. Charge two cars at the same time with up to 22 kW per socket. Aura is complete with an associated cloud solution and the option to choose for yourself whether you want to use Charge Amps Cloud or another cloud service. Become a certified Charge Amps installer via the courses at [Charge Amps Academy](https://www.chargeamps.com/sv/academy/).

- 2 x 22 kW, but can be set down to any output
- Load balancing between sockets
- Connection via WiFi or 4G*
- Suitable for home charging and BRF, residential and business charging
- Compatible with load balancers Enegic Monitor EVI (E293) and Charge Amps Amp Guard (E274)
- Built-in RCDs Type-B complying with IEC 60947-2: AC: 30 mA, DC: 6 mA.

*SIM card for free connection included for 24 months for the 4G variant E528/131503. After 24 months, you can pay the equivalent of 1.50 Euro per month per charging point for continued connection. You can remove the SIM card and replace it with another SIM card or switch to WIFI if you don't want to continue.

**Larger orders? Request a quote via partner@efuel.se**

Variant

Charge Amps Aura (RCD)

Aura (RCD)

Charge Amps Aura 4G (RCD)

**General**

- Supplier: Nexblue
- Black: E485/NB1620A-Black
- Anthracite gray: E486/NB1620A-Grey
- Blue: E487/NB1620A-Blue
- Manufacturer warranty: 5 years\*
- Dimensions (mm): H: 235 x W: 230 x D: 130
- Wall mounting (mm): H: 206 x W: 130
- Weight: 1.8 kg
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Operating humidity: 5% to 80%
- Working altitude: < 2000 m
- External package: Cardboard box


**User interface**

- Enclosure: Plastic
- LED indicator: Red / Green / Blue / White / Orange
- RFID reader: ISO / IEC 14443 Type A
- Startup modes:
- myNexBlue APP / RFID / NFC / Plug & Play / NexBlue user portal


**Charging & Power Grid**

- Charging power: 1.4 to 22 kW
- Charging connector: Type 2 socket
- Rated current: 6 A single phase to 32 A three phase
- Maximum output current: 32 A
- Voltage: 3 \* 400 V AC / 230 V AC (±10%)
- Installation network: TN, IT or TT (auto-detected)
- Mains frequency: 50 Hz
- Built-in energy meter: ±2%


**Connectivity**

- Wi-Fi: 2.4 GHz 802.11b/g/n
- Built-in eSIM: 4G (LTE Cat M1) / 2G / GPRS
- Nexus RF
- Bluetooth: BLE 4.2
- OCPP: Local OCPP 1.6-J


**Protection**

- Built-in residual current protection:
- RDC-DD (6 mA DC) according to IEC 62955 + 30 mA AC\*\*
- Protection class: IP54
- Shock protection: IK08
- UV-resistant
- Insulation class: I
- Overvoltage category: III
- EMC level: CLASS B
- Other protection:
- Overload protection
- Residual current protection
- Overvoltage protection
- Over/under voltage protection
- Temperature protection
- Protection against relay welding


Regulations:

- EU type-approval certificate (Module B) confirms compliance with:

- 2014/53/EU (RED)

- 2014/35/EU (LVD)

- 2014/30/EU (EMC)

- 2011/65/EU (RoHS)

- Some countries may have extended warranty. [Visit](<https://nexblue.com/pages/warranty>)\*\* External type A RCD required.

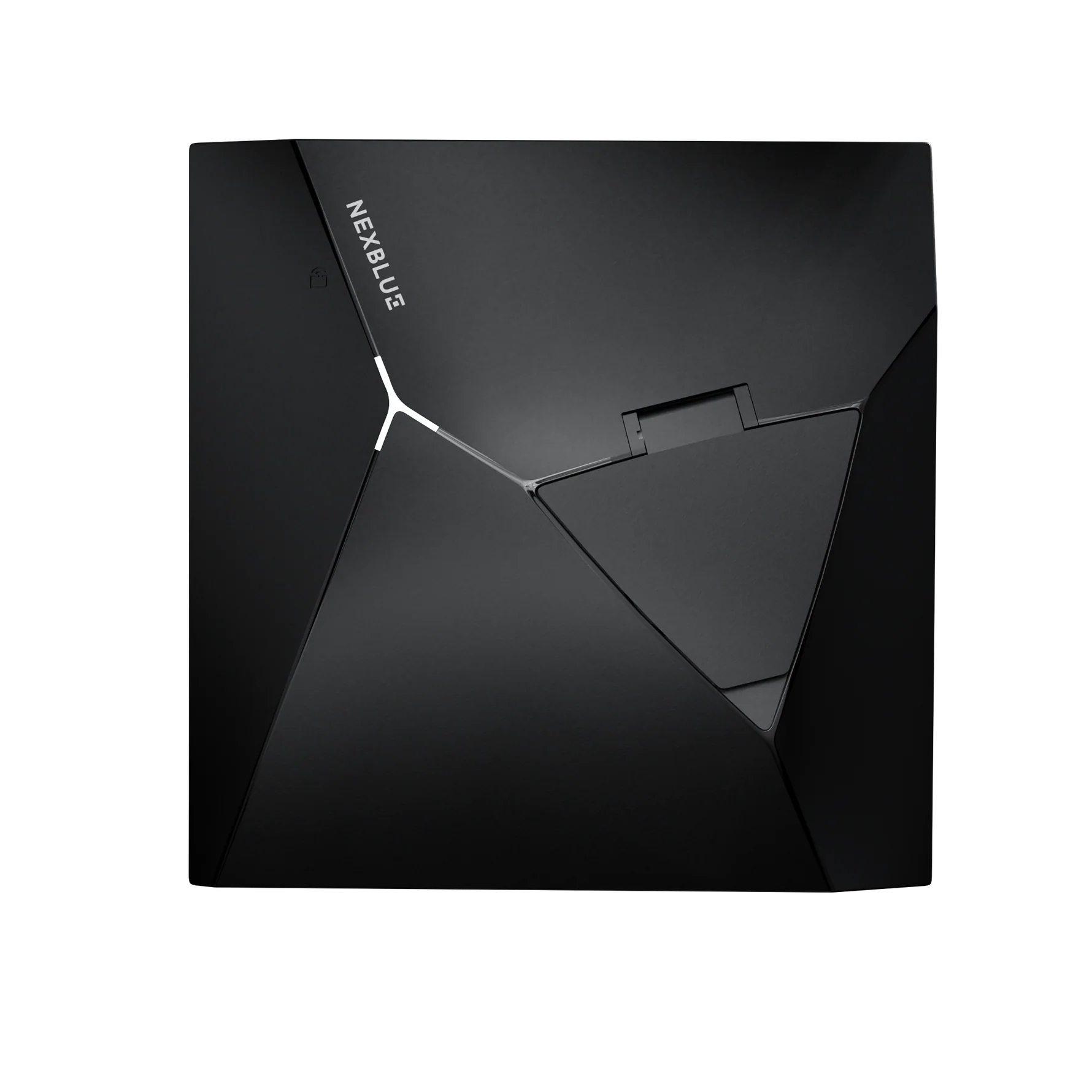

Specifications Nexblue Edge

**General:**

- Manufacturer: Nexblue
- Manufacturer's article number: SMBNA
- EAN: -
- EFUEL part number / SKU: E489
- Manufacturer Warranty: 3 years

Specifications Nexblue Zen (Smart meter)

**Product sheet:**

[Nexblue Zen (Smart Meter) Product Sheet (En)](<https://efuel-cdn.imgix.net/cms/EU_Product_Sheet_Nex_Blue_Zen_Smart_meter_v1_3_pptx_a4d2828013/EU_Product_Sheet_Nex_Blue_Zen_Smart_meter_v1_3_pptx_a4d2828013.pdf>)

[Nexblue Edge product sheet (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_EU_Product_Sheet_2d03737d51/Nex_Blue_Edge_EU_Product_Sheet_2d03737d51.pdf>)

**Manuals:**

[Nexblue Edge Installation Manual (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_Installation_Manual_ccd82472c9/Nex_Blue_Edge_Installation_Manual_ccd82472c9.pdf>)

**Certificates**

[Declaration of Conformity (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_Declaration_of_Conformity_af0b6e854b/Nex_Blue_Edge_Declaration_of_Conformity_af0b6e854b.pdf>)

**Drill hole dimensions**

[Drill hole template (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_Drilling_Template_4975c50f7b/Nex_Blue_Edge_Drilling_Template_4975c50f7b.pdf>)

**Video:**

[Nexblue Edge Installation Video (EN)](<https://www.youtube.com/watch?v=EqlD1LJwQlM>)

**Marketing material:**Find sales material [here](<https://drive.google.com/drive/folders/1CfvLPQF93Jym7ZjSG1yMii9clUNwYM-1?usp=drive_link>)

**Nexblue Edge and Zen (Smart Meter) bundle**

**Nexblue Edge** - an outstanding charging box created to fulfill charging needs both today and in the future. Nexblue Edge represents a harmony of hardware and software, which together form an ideal charging solution for a variety of usage scenarios. With a modular and easy-to-install design, Nexblue Edge offers a hassle-free installation and user experience, saving valuable time for both installers and users. It is robust and reliable, equipped with advanced safety features that ensure safe and efficient charging.

- 22 kW
- Charge on solar power
- Charge when the price is cheapest
- Free connection via esim
- RFID
- Quick installation and configuration via Nexblue Partner App
- Seamless compatibility with Nexblue Zen load balancer
- Full control via the Nexblue app

**Nexblue Zen (Smart Meter)** is an advanced solution for dynamic load balancing and solar surplus charging. It is ideal for homes with smart meters and can easily communicate with Nexblue chargers via Wi-Fi or radio frequency (Nexus RF) locally. With built-in Bluetooth, the load balancer can be easily configured and used without the need for Wi-Fi. Designed for simplicity, Nexblue Zen can be installed by an electrician or homeowner in seconds thanks to quick connection to the smart meter's HAN or P1 port. In addition, it is easily configured together with the charging box via the Nexblue Partner app.

- Quick and easy installation via the smart meter's HAN (RJ45) or P1 (RJ12) port.
- Protects against overloading the system and ensures dynamic charging.
- Uninterrupted communication through Nexus RF or Wi-Fi and Bluetooth for configuration.
- Charge with solar surplus if you have solar panels.
- No additional power source required.

The Nexblue Edge Package is a complete charging solution that combines the Nexblue Edge charging station with the Nexblue Zen load balancer, specifically designed for smart meters. This package is ideal for meeting both current and future charging needs. Nexblue Edge provides reliable charging with 22 kW capacity, support for solar charging, and the ability to charge when electricity prices are lowest. Paired with Nexblue Zen, you get dynamic load balancing that efficiently manages solar energy surplus and optimizes charging via your smart meter. Installation is quick and easy, with all configuration done smoothly through the Nexblue Partner App – a comprehensive solution for both homes and businesses.

Nexblue Edge + Zen HAN/P1

Nexblue Edge + Zen (Smart Meter)

Edge + Zen (Smart Meter)

Gray

**Generall:**
- Supplier: Go-e
- Live. article no
11 kW: CH-05-11-01
22 kW: CH-05-22-01
- EFUEL's article number:
11 kW: E519
22kW: E520
- EAN article number:
11 kW: 9120087411979
22 kW: 9120087411993
 - Manufacturer's warranty: 5 years
 - IP rating: IP65
 - IK classification: IK08
 - Outlet: 1x Type-2

**Configurable charging current:**
- 6 A to 16 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW)
- 6 A to 32 A (1.4 kW - 3.7 kW - 7.4 kW - 11 kW - 22 kW)
- in 1 A step via app or in 5 steps with a push button

**Rated Voltage:**
- 230 V (single phase) / 400 V (three phase)
- 1-/3-phase switching via app

**Security:**
- Indoor and outdoor installation
- DC protection unit with detection of direct current and additional detection of alternating current
- Locking the charging cable
- RFID access control

**Convenience and Durability:**
- Connection: Built-in eSIM with 5 years of free data, after that period you can extend the connection at a cost of 12 Euro per year
- Electricity meter (log via app download)
- RFID chip management
- Scheduler
- Variable electricity prices
- Eco mode / scheduled charging mode
- Static load balancing
- Photovoltaic connection via API

**Control, power and status display:**
- Button, app (local hotspot or global via WLAN)
- Indication via LED and app

**Network connection:**
- 30 cm cable, 5 x 2.5 mm² + connector CEE red 16 A (11 kW)
- 30 cm cable, 5 x 6 mm² + connector CEE red 32 A (22 kW)
- Alternative adapters for other sockets

**Weights and Measures:**
- Dimensions: Approx. 15.5 x 26 x 11 cm
- Weight: Approx. 1.63 kg (11 kW), approx. 1.82 kg (22 kW)

**Product sheet:**

[Product sheet (EN)](https://efuel-cdn.imgix.net/cms/go_e_charger_gemini_flex_2_0_data_sheet_be632f88bf/go_e_charger_gemini_flex_2_0_data_sheet_be632f88bf.pdf)

**Manuals:**

[Manual (EN)](https://efuel-cdn.imgix.net/cms/go_e_charger_gemini_flex_installation_and_operating_manual_e00dc7604a/go_e_charger_gemini_flex_installation_and_operating_manual_e00dc7604a.pdf)

[Quick guide (SE & EN)](https://efuel-cdn.imgix.net/cms/go_e_gemini_flex_11_22_kw_snabbguide_9241b6c261/go_e_gemini_flex_11_22_kw_snabbguide_9241b6c261.pdf)

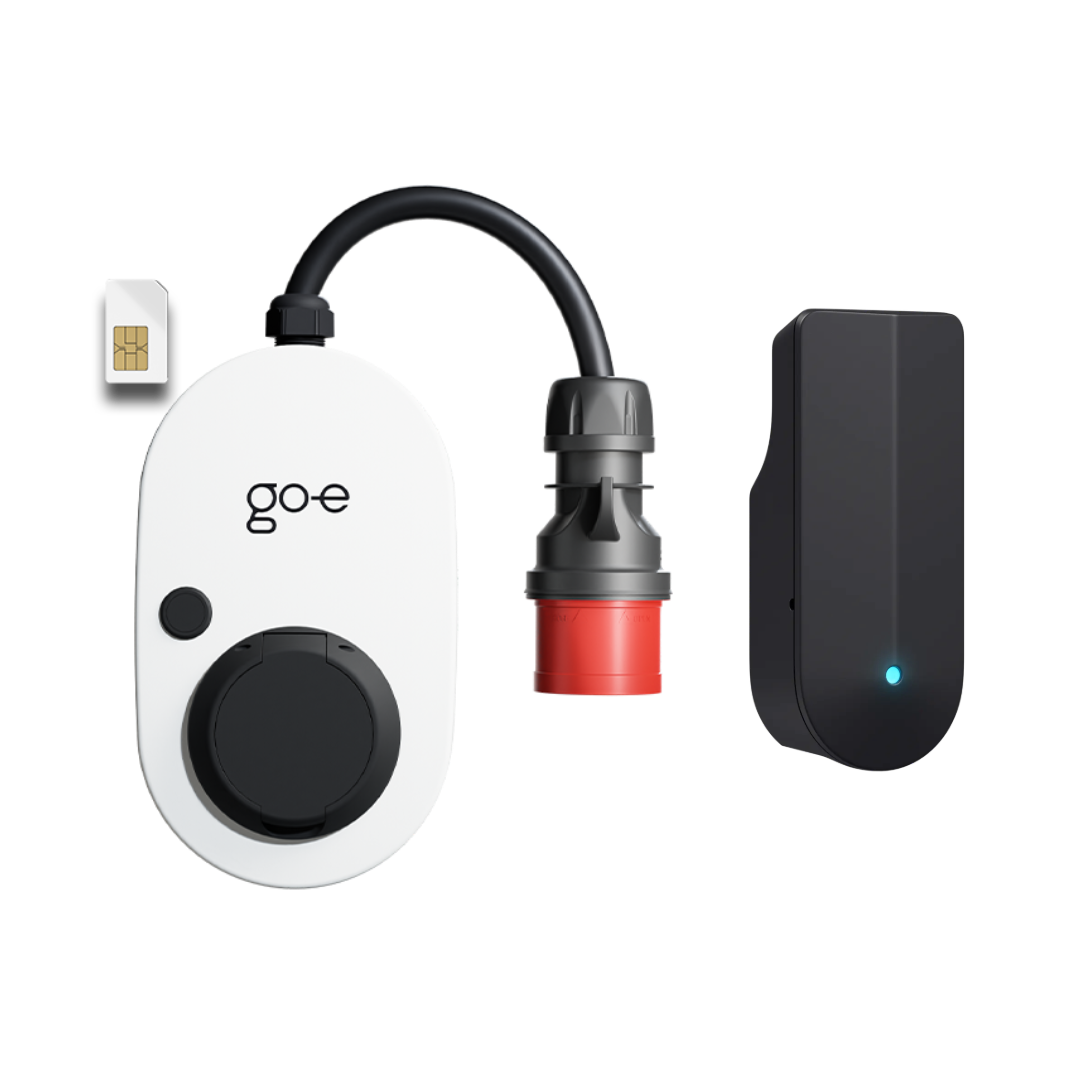

go-e Charger Gemini flex 2.0 is a portable charging box with many smart functions integrated that make charging electric cars even more convenient. With a wall mount, the go-e Charger Gemini flex can be used in the same way as a regular stationary charging station. A major advantage is that the charging station can easily be transformed into a mobile charging station and offers maximum charging flexibility even in places where there is no (public) charging station available. This allows you to relax at the summer cottage, the campsite or when you are visiting friends and family. The charger can be connected directly to a suitable red CEE three-phase socket or via an adapter (available as an accessory) to another socket.

The difference between Gemini Flex and Gemini Flex 2.0 is that 2.0 has a built-in eSIM with 5 years of free data, after that period you can extend the connection at a cost of 12 Euros per year. All smart functions, software updates and remote diagnostics in case of support are available even without WiFi thanks to the integrated SIM card and mobile connection.

- eSIM with 5 years of free data
- The product is approved for tax reduction for green technology when permanently installed with a CEE 3-phase socket
- Available in two variants: 11 kW or 22 kW
- Fits all electric cars with a Type 2 connector
- Compatible with Enegic and Tibber
- Enables remote monitoring and control via mobile app for convenient management and statistics
- Compact size and intuitive user experience make it ideal for home use and travel
- 5 year warranty

**Larger orders? Request a quote via partner@efuel.se**

go-e Charger Gemini flex 2.0 is a portable charging box with many smart functions integrated that make charging electric cars even more convenient. With a wall mount, the go-e Charger Gemini flex can be used in the same way as a regular stationary charging station. A major advantage is that the charging station can easily be transformed into a mobile charging station and offers maximum charging flexibility even in places where there is no (public) charging station available. This allows you to relax at the summer cottage, the campsite or when you are visiting friends and family. The charger can be connected directly to a suitable red CEE three-phase socket or via an adapter (available as an accessory) to another socket.

go-e Charger Gemini Flex 2.0 | Become a Partner

Current strength

go-e Charger Gemini Flex 2.0 (4G)

go-e Charger Gemini Flex 2.0

Charger Gemini Flex 2.0 (4G)

11kW

22kW

**General:**
EFUEL Part Number: E579
ONEPOLE Part Number: QBB2P

**Technical Specification**

- Net weight: 7.16kg kg
- Gross weight: 7.5 kg
- Net dimensions: 612x535x3mm
- Gross dimensions: 650x550x100mm
- Material: Steel
- Surface treatment: Aluzink

**Manual:**

[Download manual (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_BASE_MOUNT_Installation_manual_R1_0_2024_e5803c2f2f/ONEPOLE_PRO_BASE_MOUNT_Installation_manual_R1_0_2024_e5803c2f2f.pdf>)
[Download manual - one page (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Base_mount_inst_guide_2024_6542246d21/ONEPOLE_PRO_Base_mount_inst_guide_2024_6542246d21.pdf>)



**Product sheet:**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/Onepole_flyer_Nytt_fundament_2_846fe425ab/Onepole_flyer_Nytt_fundament_2_846fe425ab.pdf>)

**Data sheet:**

[ONEPOLE Data sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Base_Mount_datasheet_6323d77523/ONEPOLE_PRO_Base_Mount_datasheet_6323d77523.pdf>)

**NOTE! Buy between 1-4 pcs delivered from Wednesday 16th and 5+ delivered immediately.**

Do you need a flat foundation that takes up minimal space in your professional vehicle (3 mm in thick)? Tired of concrete dust littering the car?

**Quick Installation** Can be mounted in 1-2 minutes with a click-and-bend system that only requires an adjustable spanner. No casting needed; simply dig into the ground.

**High Quality and Self-healing surface** The Base Mount is from Aluzink, known for its superior corrosion resistance, ideal for anchoring in soil. This material is well-proven in similar applications across Europe. Flexible Bolt Spacing. Compatible with current and future poles, including lighting and security bollards.

**Stable in All Soil Types** Adjustable base plate, which can be folded out or in, enhances stability in various soil types, whether it’s narrow cable trenches, sand, clay, or lighter soils.

**TIP!** For a really smooth and quick installation, the tool ONEPOLE PRO Bullseye Leveler is available in the car, can be purchased [here](https://www.efuel.eu/products/accessory-charging-poles/onepole-bullseye-leveler)

**Need help building your ONEPOLE PRO?**

Try the ONEPOLE configurator [here](<https://www.onepole.no/sv/configurator/stage/type>)

Do you need a flat foundation that takes up minimal space in your professional vehicle (3 mm in thick)? Tired of concrete dust littering the car?

**Quick Installation** Can be mounted in 1-2 minutes with a click-and-bend system that only requires an adjustable spanner. No casting needed; simply dig into the ground.

**High Quality and Self-healing surface** The Base Mount is from Aluzink, known for its superior corrosion resistance, ideal for anchoring in soil. This material is well-proven in similar applications across Europe. Flexible Bolt Spacing. Compatible with current and future poles, including lighting and security bollards.

**Stable in All Soil Types** Adjustable base plate, which can be folded out or in, enhances stability in various soil types, whether it’s narrow cable trenches, sand, clay, or lighter soils.

**Need help building your ONEPOLE PRO?**

Try the ONEPOLE configurator [here](<https://www.onepole.no/sv/configurator/stage/type>)

 ONEPOLE PRO Base Mount foundation

Title

ONEPOLE PRO Base Mount foundation

ONEPOLE PRO Base Mount

PRO Base Mount foundation

Default Title

**Features and Benefits:**

_MID-Certified:_

The MID meter measures and displays the current consumption of electricity. It provides one hundred percent transparency to the end user and the ability to see exactly how many kW have been used to charge the electric car. The MID meter is also a requirement in many countries, making Charge Amps Dawn compliant with European standards and thereby ready for the European market.

_Installer's Best Friend:_

Charge Amps aims to be the installer's best friend, and Dawn has been developed with a backplate where installation and configuration are done. Thanks to the backplate, cable routing and connection are significantly simplified. In addition, there is "The Installation Wizard" which smoothly guides the installer through the entire installation process, step by step.

_Built-in Residual Current Device:_

Charge Amps Dawn also has a built-in type B residual current device and DC protection in the charger. It protects the electric car from ground faults and ensures that the car is not damaged.

_Partner Account with Charge Amps:_

Remember that as an installer, you need to get a Partner Account to install, configure, and best manage Charge Amps' various products. All more advanced settings, such as setting up and configuring load balancing, require such a Partner Account.

How do you get a Partner Account? Visit the Charge Amps Help Center and submit a request by selecting the "Partner Account" option in their support form – [link](https://support-se.zendesk.com/hc/en-us).

Description

**General:**

- Manufacturer: Charge Amps
- Manufacturer's Item Number: 130297
- EFUEL's Item Number / SKU: E273
- Manufacturer's Warranty: 3 years

**Technical Information:**

- Charging Current: 6–32 A or 1-3 phase
- Voltage: 230/400 V
- Operating Temperature: -35°C to +45°C
- Identification: RFID
- Charging Standard: Mode 3
- Connectivity: WiFi, 4G LTE, Bluetooth
- Communication Protocol: OCPP 1.6J
- Protection Against Fault Currents: Separate DC fault current protection and an RCD type B integrated - into the charging station
- Energy Measurement: MID, 3-phase voltage, current, and power
- IP Rating: IP 54 inner enclosure/module; IP 44 outer enclosure
- IK Rating: IK 10
- Socket: Type 2, 22 kW
- SIM Card: eSIM 33, included in the charging station

**Dimensions and Weight:**

- Dimensions: (W × D × H) 250 × 145 × 378 mm
- Weight: 3.5 kg

**Manualer:**

[Installation manual](https://efuel-cdn.imgix.net/cms/Charge_Amps_Dawn_Installation_Manual_rev01_fdb8deafc3/Charge_Amps_Dawn_Installation_Manual_rev01_fdb8deafc3.pdf)

[User manual](https://efuel-cdn.imgix.net/cms/Charge_Amps_Dawn_User_Manual_rev01_62fdefdcf6/Charge_Amps_Dawn_User_Manual_rev01_62fdefdcf6.pdf)

*Education**

Become a certified Charge Amps installer through training at Charge Amps Academy. [To Charge Amps Academy](https://www.chargeamps.com/academy/).

**Video:**

[Installation video](https://www.youtube.com/watch?v=jqODIM7rBSw)

[Introduction video)](https://www.youtube.com/watch?v=Yj1ichuaJYE)


Charge Amps Dawn is a user-friendly, intelligent, and powerful charging station built for the future. Capable of charging up to 22kW, it is easy to install and use and can be connected to Charge Amps Cloud and the Charge Amps App. Become a certified Charge Amps installer through training at [Charge Amps Academy](https://www.chargeamps.com/academy/).

- Certified MID meter
- 4G or WiFi for constant connectivity
- Built-in residual current device and DC protection
- OCPP interoperability
- Suitable for home charging and charging in housing associations, villas, and businesses
- Compatible with load balancers Enegic Monitor EVI (E293) and Charge Amps Amp Guard (E274)

Please note that a separate installation kit is required to enable the series connection of multiple chargers. See "Installation Kit Charge Amps Dawn".

Charge Amps Dawn is a user-friendly, intelligent, and powerful charging station built for the future. Capable of charging up to 22kW, it is easy to install and use and can be connected to Charge Amps Cloud and the Charge Amps App. Become a certified Charge Amps installer through training at [Charge Amps Academy](https://www.chargeamps.com/academy/).

- Certified MID meter
- 4G or WiFi for constant connectivity
- Built-in residual current device and DC protection
- OCPP interoperability
- Suitable for home charging and charging in housing associations, villas, and businesses
- Compatible with load balancers Enegic Monitor - Charge Amps (E292-293) and Charge Amps Amp Guard (E274)

Please note that a separate installation kit is required to enable the series connection of multiple chargers. See "Installation Kit Charge Amps Dawn".

Charge Amps Dawn

Dawn

**General:**

- Manufacturer: ONEPOLE
- EFUEL article number: E597
- Lev. article no: QB1WH


**Technical specification**

Net Weight: 0,61kg
Gross Weight: 0,65kg
Net Dimension: 175x175x9mm
Gross Dimensions: 183x180x25mm
Material: Powder-coated searesistant aluminum
Surface Treatment: Powdercoated ISO 12944, Category C4

**Product sheet:**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Bullseye_Leveler_89b9fbd19e/ONEPOLE_PRO_Bullseye_Leveler_89b9fbd19e.pdf>)

ONEPOLE PRO Bullseye Leveler. This universal leveler is specifically designed for ONEPOLEPRO Base Mount but also other foundations with CC160 or CC140 bolt alignment, ensuring precise and quick leveling. It simplifies the alignment process between the foundation and the ONEPOLE PRO pedestal, making installation faster and more accurate.

The ONEPOLE PRO Blind Lid Octo has two main functions. Firstly, it can cover and protect the spaces between EV charging stations when the Quattro mount is installed. Secondly, it can act as a front enclosure for the plinth when the plinth is mounted without a charger.

ONEPOLE Blind Lid Octo

ONEPOLE PRO Bullseye Leveler

PRO Bullseye Leveler

### Easee Charge Lite

**Features and Benefits:**

- Reliable and consistent performance.
- An ecosystem of smart electrical devices.
- Future-proof solution that is always up to date.
- User-friendly Easee App.
- Integration with multiple other apps and smart services.
- Ability to install up to three chargers at one location.
- Built to withstand tough weather conditions.
- Compact and lightweight.
- Designed and manufactured in Norway.
- Manufacturer's warranty 3 years in EU.
- Option to permanently lock the charging cable to the charger for convenience.

### Easee Equalizer

**About:**
Please note that the device comes in two versions: RJ12 and RJ45, depending on your electricity meter. At EFUEL, we have chosen to refer to the two variants of the HAN port as RJ45 socket and P1 port for RJ12 socket.







### Easee Charge Lite

**General:**

- Manufacturer: Easee
- EFUEL SKU: E328

**Technical Information:**

- Dimensions (mm): H: 256 × W: 193 × D: 106
- Wall Mounting (mm): c/c H: 160 x W: 125
- Operating Temperature: -30°C to +50°C
- Weight: 1.5 kg
- Manufacturer's Warranty: 5 years

**Connection:**

- Wi-Fi 2.4 GHz b/g/n
- Bluetooth 4.3
- Built-in eSim (additional cost)
- OCPP 1.6
- Easee Link (between charger and Equalizer)
- Built-in RFID/NFC reader for access control
- Control and monitor charging with the Easee app

**Power Grid and Fuses:**

- Voltage: 3x 230 V / 400 V AC (±10%)
- Grid Frequency: 50 Hz
- Grid Types: TN, IT, TT

**Charging Power for Charge Lite:**

- Single-phase: 1.4 kW (6A) – 7.4 kW (32A)
- 3-phase TN: 4.1 kW (6A) – 11 kW (16A)
- 3-phase IT: 2.4 kW (6A) – 11 kW (28A)
- Chargers per Location: 3
- Connection Point: Type 2 socket
- Automatic adjustment of charging speed based on available power (Equalizer required)
- Automatic charging with solar generation (Equalizer required)
- Automatic phase balancing (Equalizer required)
- Built-in energy meter

**Installation:**

- Automatic detection of power grid (TN, IT, TT)
- Circuit Breaker: Max 40A
- Fuse size must be configured by an electrician on the backplate of the charger using the Easee Installer App
- Wire Size: Up to 16 mm2 (single cable) / Up to 10 mm2 (parallel connection)
- Cable Diameter: 8–22 mm
- Final tightening torque: 5 Nm
- Stripping Length: 12 mm

**Protection:**

- Overload protection according to EN IEC 61851-1:2019
- Built-in RCD protection (AC 30 mA / DC 6 mA)
- External RCD protection of type A is required for Charge Lite
- Dustproof/waterproof: IP54. Impact resistance: IK10
- Insulation class: I
- Overvoltage category: III
- 14 built-in temperature sensors for detecting poor connections and faults

**Anti-Theft:**

- The charging cable can be permanently locked to the charging station with the Easee App.
- Padlock bracket to protect the charger from theft.

### Easee Equalizer

**General:**

- Manufacturer: Easee
- Manufacturer's Item Number: Han-Port RJ45 – 80101; P1 RJ12 – 80110
- EAN: Han-Port RJ45 – 7090052310410
- EFUEL SKU: P1 RJ12 – E173; Han-Port RJ45 – E121

**Technical Information:**
To make the Equalizer work on the electricity meter, the customer interface port must be enabled. If it is not enabled, the device will not receive power or be able to transfer data. Contact your network operator to enable the customer interface port. Please note that your local network operator may not necessarily be the same as your electricity operator. Activating the customer interface port can take several days, depending on the network operator. Only the person who owns the electricity meter can activate/open the customer interface port. The owner of the electricity meter is the one listed as the recipient on the electricity bill.

Check your electricity meter or contact your electricity distribution company to ensure that you have an activated HAN port (RJ45) or HAN port (RJ12), also known as P1/H1, depending on the national standard you are referring to. Regardless of which port you have, we at EFUEL can assist you.

At EFUEL, we have chosen to refer to the two variants of the HAN port as RJ45 socket and P1 port for RJ12 socket.

### Easee Charge Lite

**Product sheets:**

[Important product information)](https://efuel-cdn.imgix.net/cms/All_IPI_V1_01_rev3_8841f788d9/All_IPI_V1_01_rev3_8841f788d9.pdf)

[Charging at home](https://efuel-cdn.imgix.net/cms/EN_Easee_Home_Charging_Productsheet_V1_01_21_08_76281b78aa/EN_Easee_Home_Charging_Productsheet_V1_01_21_08_76281b78aa.pdf)

[Product sheet for installers](https://efuel-cdn.imgix.net/cms/EN_Easee_Lite_Productsheet_V1_01_Installer_a62942d03b/EN_Easee_Lite_Productsheet_V1_01_Installer_a62942d03b.pdf)

[EU Declaration of Conformity](https://efuel-cdn.imgix.net/cms/EN_Easee_Charge_Lite_CE_declaration_06e00cafcd/EN_Easee_Charge_Lite_CE_declaration_06e00cafcd.pdf)

[EU-type Examination Certification - TUV Rheinland](https://efuel-cdn.imgix.net/cms/Charge_Lite_E_Ucertified_fdf35029bc/Charge_Lite_E_Ucertified_fdf35029bc.pdf)


**Manuals:**

[Manual for installers](https://efuel-cdn.imgix.net/cms/EN_Charge_Lite_IG_36f12a7251/EN_Charge_Lite_IG_36f12a7251.pdf)

[Manual for end-users](https://efuel-cdn.imgix.net/cms/Charge_Lite_User_Guide_d2346d9df0/Charge_Lite_User_Guide_d2346d9df0.pdf)

### Easee Equalizer

**Video:**

[Easee Equalizer installation video](https://www.youtube.com/watch?v=oMDqSy68uh4)

Replaced by new Easee Charge Up, sale while stocks last.

Easee Plus and unlimited 4G without any extra monthly cost are still included with the purchase of Easee Charge Lite. This offer is valid indefinitely for all Charge Lite units purchased from EFUEL and, of course, for the chargers we have already sold.

Easee Charge Lite – Package with Easee Equalizer is the perfect solution for home installations. Easee Charge Lite is intelligent and adapts to all electric vehicles, voltages, and power grids. The charging station automatically detects if the car supports 3-phase or not. Easee Equalizer is a small and smart device designed to optimize the charging experience. It connects to the electricity meter and automatically balances the total energy between the charging station and the property.

The package includes 1 Easee Charge Lite [E328] and 1 Easee Equalizer (choose between P1 or RJ45) [E121/E173].

- Easy to install
- Dynamic charging power 1.4–11 kW
- WiFi connectivity
- Local load and phase balancing
- Dynamic load balancing via Easee Equalizer
- Equalizer is available in two versions: RJ12 (P1 port) & RJ45 (HAN port)
- PSA Type A is required for installation

Easee Plus and unlimited 4G without any extra monthly cost are still included with the purchase of Easee Charge Lite. This offer is valid indefinitely for all Charge Lite units purchased from EFUEL and, of course, for the chargers we have already sold.

Easee Charge Lite – Package with Easee Equalizer is the perfect solution for home installations. Easee Charge Lite is intelligent and adapts to all electric vehicles, voltages, and power grids. The charging station automatically detects if the car supports 3-phase or not. Easee Equalizer is a small and smart device designed to optimize the charging experience. It connects to the electricity meter and automatically balances the total energy between the charging station and the property.

The package includes 1 Easee Charge Lite [E328] and 1 Easee Equalizer (choose between P1 or RJ45) [E121/E173].

- Easy to install
- Dynamic charging power 1.4–11 kW
- WiFi connectivity
- Full dynamic load balancing between the charging network and the property network
- Equalizer is available in two versions: RJ12 (P1 port) & RJ45 (HAN port)
- PSA Type A is required for installation

Easee Charge Lite + Equalizer

Package selection

Charge Lite + Equalizer

Easee Charge Lite + Equalizer HAN Rj45

Easee Charge Lite + Equalizer P1 Rj12

**General:**

- Manufacturer: Nexblue
- Manufacturer Part Number: CS3ANA
- EAN: -
- EFUEL part number / SKU: E488
- Manufacturer Warranty: 3 years


**Technical Specification**

- Model: CS3ANA
- Dimensions (mm): H: 85.8 x W: 27 x D: 66.8 Weight: 95 g
- Overvoltage category: OVC II Insulation class: II
- Voltage measurement range: 85-264 V AC
- Nominal power: 3 W
- Current measurement range: CT clamps (included): ± 0 - 80 A (MAX cross section: 16 mm²)
- Rogowski coil (optional): ±0 - 1500 A
- Power supply: 85 - 264 V AC, 50Hz
- Installation system: TT, IT or TN single phase to three phase
- Connections: Mains connection / Solar panel connection / RS-485 / LAN / Wi-Fi connection / Power supply connection
- Mounting: DIN rail
- Warranty: 5 years


**Operating conditions**

- Operating temperature: -25°C to +55°C
- Protection class: IP30
- Relative humidity: 0 - 90%
- Altitude above sea level: 0-2000 m
- For indoor use only


**Connectivity**

- Wi-Fi: 2.4 GHz 802.11b/g/n
- Bluetooth: BLE 4.2
- Nexus RF
- RS-485: TIA/EIA-485A
- Ethernet: ISO/IEEE 802.3u


Regulations:

- EU Type Approval Certificate (Module B) confirming compliance with:
- Radio Equipment Directive 2014/53/EU
- Article 3.1.a: Health and safety
- Article 3.1.b: EMC
- Article 3(2): Efficient use of radio spectrum

Specifications Nexblue Zen (Current Sensor)

**Product sheet:**

[Nexblue Edge Product Sheet (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_EU_Product_Sheet_2d03737d51/Nex_Blue_Edge_EU_Product_Sheet_2d03737d51.pdf>)

[Nexblue Zen - Product sheet (SE)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Zen_Product_Sheet_567ceb6528/Nex_Blue_Zen_Product_Sheet_567ceb6528.pdf>)

**Manuals:**

[Nexblue Edge Installation Manual (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_Installation_Manual_ccd82472c9/Nex_Blue_Edge_Installation_Manual_ccd82472c9.pdf>)

[Nexblue Zen - Installation manual (SE)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Zen_Installation_Manual_748b9adb54/Nex_Blue_Zen_Installation_Manual_748b9adb54.pdf>)

**Certificate of Conformity**

[Nexblue Edge - Declaration of Conformity (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_Declaration_of_Conformity_af0b6e854b/Nex_Blue_Edge_Declaration_of_Conformity_af0b6e854b.pdf>)

[Nexblue Zen - Declaration of Conformity](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Zen_Declaration_of_Conformity_49b94a2d66/Nex_Blue_Zen_Declaration_of_Conformity_49b94a2d66.pdf>)

**Drill hole dimensions**

[Drill hole template (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Edge_Drilling_Template_4975c50f7b/Nex_Blue_Edge_Drilling_Template_4975c50f7b.pdf>)

**Video:**

[Nexblue Edge - Installation video (EN)](<https://www.youtube.com/watch?v=EqlD1LJwQlM>)

[Nexblue Zen - Installation video (EN)](<https://www.youtube.com/watch?v=HTtmTRGoAds>)

[myNexblue App (Users) - Apple Store](<https://apps.apple.com/se/app/mynexblue/id6444075862>)

[myNexblue App (User) - Google Play](<https://play.google.com/store/apps/details?id=com.yfyj.nexblue&pli=1>)

[Nexblue Installer App (Installer) - Apple Store](<https://apps.apple.com/se/app/nexblue-partner/id1663398619>)

[Nexblue Installer App (Installer) - Google Play](<https://play.google.com/store/apps/details?id=com.yfyj.nexblue_wiremain&pcampaignid=web_share>)

Did you miss the launch of Nexblue? Watch it on replay [here](<https://my.demio.com/recording/4v3GUqFw>).

**Nexblue Edge + Zen Current Sensor** is a complete charging system that creates a smooth and safe charging experience. Together, the products form an ideal charging solution for a variety of usage scenarios. With a modular and easy-to-install design, Nexblue Edge and Zen offer a hassle-free installation and user experience, saving valuable time for both installers and users. It is robust and reliable, equipped with advanced safety features that ensure safe and efficient charging.

Nexblue Edge is not only designed for today's needs, but is also prepared for the future. Its versatile architecture supports all types of electric vehicles and grids. With future-ready hardware and software that can be easily upgraded via OTA (over the air), Nexblue Edge ensures you are always at the forefront of charging technology.

**Nexblue Zen (Current Sensor)** is an advanced solution for dynamic load balancing and solar surplus charging. It is ideal for homes without smart meters and can easily communicate with Nexblue chargers via Wi-Fi, LAN or radio frequency (Nexus RF) locally. With built-in Bluetooth, the load balancer can be easily configured and used without the need for Wi-Fi. Nexblue Zen is designed for simplicity and can be installed by an electrician in less than four minutes thanks to the quick-connect terminals, built-in power supply module and the circuit breaker (MCB). In addition, it is easily configured together with the charging box via the Nexblue Partner app.

**Nexblue Edge**

- 22 kW
- Free connection via esim
- RFID
- Quick installation and configuration via Nexblue Partner App
- Seamless compatibility with Nexblue Zen load balancer
- Full control via Nexblue app
- Charge on solar power
- Charge when the price is cheapest


**Nexblue Zen**

- Quick and easy installation.
- Protects against overloading the system and ensures dynamic charging.
- Uninterrupted communication through Nexus RF, Wi-Fi or Ethernet.
- Charge with solar surplus if you have solar panels.


*The promotion is valid until June 31*

**Larger order? Request a quote via partner@efuel.se**

Nexblue Edge + Zen Current Sensor is a complete charging system that creates a smooth and safe charging experience. Together, the products form an ideal charging solution for a variety of usage scenarios. With a modular and easy-to-install design, Nexblue Edge and Zen offer a hassle-free installation and user experience, saving valuable time for both installers and users. It is robust and reliable, equipped with advanced safety features that ensure safe and efficient charging.

Nexblue Edge is not only designed for today's needs, but is also prepared for the future. Its versatile architecture supports all types of electric vehicles and grids. With future-ready hardware and software that can be easily upgraded via OTA (over the air), Nexblue Edge ensures you are always at the forefront of charging technology.

- 22 kW
- Free connection via esim
- RFID
- Quick installation and configuration via Nexblue Partner App
- Seamless compatibility with Nexblue Zen load balancer
- Full control via Nexblue app
- Charge on solar power

Nexblue Edge + Zen (Current Sensor) | Charging box with load balancing

Nexblue Edge + Zen (Current Sensor)

Nexblue Edge + Zen Current Sensor

Edge + Zen (Current Sensor)

**General:**

- Manufacturer: Zaptec
- EFUEL's item number / SKU: E850
- Manufacturer's Warranty: 5 years

**Technical Information:**

- Number of Phases: 1-phase & 3-phase
- Maximum Charging Power: 22 kW
- Cable or Socket: Socket
- IP Rating: IP54
- Built-in Energy Measurement: Yes
- Approved for Tax Deduction: Yes
- Residual Current Device: Requires a type A residual current device
- Manufactured in: Norway
- RFID: Yes
- Adjustable Power: Yes
- Load Balancing: Yes, optional
- OCPP: Yes
- App Connection: Yes
- Connectivity: Yes WIFI & 4G

**Manuals:**

[Installation manual](https://efuel-cdn.imgix.net/cms/Zaptec_Go_Installer_Manual_51e0a9db06/Zaptec_Go_Installer_Manual_51e0a9db06.pdf)

[Installation manual](https://efuel-cdn.imgix.net/cms/Zaptec_Go_User_Manual_b87a5000af/Zaptec_Go_User_Manual_b87a5000af.pdf)


**Video:**

[Installation video for electricians](https://www.youtube.com/watch?v=VOOijZoEEzI)

Installation video for users](https://www.youtube.com/watch?v=0AB_hj90PDc)


**Cloud White is out of stock**

Zaptec Go, with its traditional Scandinavian design and groundbreaking Norwegian technology, is one of the world's smallest 22 kW electric vehicle chargers. Packed with premium technology, the charging box is always connected and automatically updates itself with the latest features and updates.

- Suitable for all cars, both electric and hybrid
- Connected with WiFi or 4G LTE-M
- Suitable for home charging
- Compatible with load balancers Enegic Monitor - Zaptec (E290-291) and Tibber Pulse P1 and Han (E230-231)

**Please note limited availability due to high demand. Only black in stock.**

Zaptec Go, with its traditional Scandinavian design and groundbreaking Norwegian technology, is one of the world's smallest 22 kW electric vehicle chargers. Packed with premium technology, the charging box is always connected and automatically updates itself with the latest features and updates.

- Suitable for all cars, both electric and hybrid
- Connected with WiFi or 4G LTE-M
- Suitable for home charging
- Compatible with load balancers Enegic Monitor - Zaptec (E290-291) and Tibber Pulse P1 and Han (E230-231)

Zaptec Go

Asphalt Black

Cloud White

Rock Grey

Wood Brown

Moss Green

Midnight Blue

**Features and Benefits:**

_Made for Maximum Efficiency:_
True 22 kW charging. DEFA Power is designed through advanced simulations, ensuring the fastest possible charging experience.

_PowerSmart™ with Power App:_
Offers the ability to set charging times when prices are low, based on daily prices from Nord Pool. You can also avoid extra fees during peak load times. Compatible with all energy companies and all cars.

_User-Friendly:_
Intuitive high-quality display with a step-by-step charging experience.

_Simple and Efficient Access:_
Access control via QR code, as well as RFID/NFC and SMS.

_Integrated Charging Cable:_
A robust six-meter-long integrated charging cable designed for extreme conditions offers flexibility for daily use. Includes a smart vehicle connector lock to protect the connector from external influences.

_One Device Fits All:_
Capable of handling all power and phase needs across all European markets.

**General:**
- Manufacturer: DEFA
- Manufacturer's item number: 715000
- EAN: 7042287150002
- EFUEL's Item Number / SKU: E280
- Manufacturer's Warranty: 5 years

**Temperature:**
- Operating Temperature: -40 °C to +50 °C
- Storage Temperature: -40°C to +50°C
- Extended Storage Temperature: -50°C to +85°C
- Material of Charging Unit: Plastic
- Connection: WiFi, 4/5G, LAN
- Configuration: Bluetooth
- Open Standard: OCPP 2.0.1 and ISO15118

**Charging:**
- Charging Power: Up to 22 kW
- Charging Current: 6–32 A (adjustable)
- Voltage: 230/400 V (1/3-phase, 50–60 Hz)
- Charging Cable Type: Mode 3
- Connection to Vehicle: Type 2
- Charging Cable: Included, 6 m

**Interface:**
- Integrated Display
- Size: 69 mm x 69 mm
- Brightness: Automatically adjustable
- Power Setting: App for setting DEFA Power


**Safety and Protection:**
- IP Rating: IP55
- IK Rating: IK10
- Fire Classification: UL94 V0
- Insulation Class: Class I
- Overvoltage Category: III
- Overheating Protection: Internal sensor

**Connection:**
- Grid Type: TN/IT/TT
- Fuse Size: 40 A
- Short Circuit Current: 10 kA
- RCD: 30 mA AC and 6 mA DC
- Maximum Cable Size: 16 mm²
- Torque Value: 2.5 Nm
- Stripping Length: 20 mm +/-2

**Dimensions and Weight:**
- Dimensions (mm): H:350 x W: 167 x D: 113
- Unit Weight: 2.5 kg
- Cable Weight: 3.5 kg


Certification:
- CE
- IEC 61851-1
- IEC 61439-7 ACSEV
- IEC 62955

**Product Includes:**
- Charging station with 6 m charging cable
- Wall bracket
- Cable clamp
- Multiple Grommets (x2)
- Tools and screws/plugs (Opening tool, 4 x wood screws and washers, 4 x wall plugs)

**Recycling:** Electrical and Electronic Waste




**Product sheets**

[Product sheet)](https://efuel-cdn.imgix.net/cms/Product_sheet_DEFA_Power_EN_1371052a03/Product_sheet_DEFA_Power_EN_1371052a03.pdf)

**Manuals:**

[Installation guide](https://efuel-cdn.imgix.net/cms/715986_DEFA_Power_Installation_Manual_Digital_48d94bab61/715986_DEFA_Power_Installation_Manual_Digital_48d94bab61.pdf)

[User guide](https://efuel-cdn.imgix.net/cms/715987_DEFA_Power_user_manual_Print_Digital_197fb10b1c/715987_DEFA_Power_user_manual_Print_Digital_197fb10b1c.pdf)

[DEFA Connectivity](https://efuel-cdn.imgix.net/cms/DEFA_Power_connectivity_manual_34da60d321/DEFA_Power_connectivity_manual_34da60d321.pdf)


**Videos:**

[Installation video](https://www.youtube.com/watch?v=hq6Mx1gxGjw)

[Installation video step by step](https://www.youtube.com/watch?v=NptNef5Qx5s)

[Product video version 1](https://efuel-cdn.imgix.net/cms/DEFA_Power_promotion_video_product_focus_generic_3a22027cbd/DEFA_Power_promotion_video_product_focus_generic_3a22027cbd.mp4)

[Product video version 2](https://efuel-cdn.imgix.net/cms/DEFA_Power_promotion_video_product_focus_generic_2_940414e8f8/DEFA_Power_promotion_video_product_focus_generic_2_940414e8f8.mp4)

[Product video version 3](https://efuel-cdn.imgix.net/cms/DEFA_Power_promotion_video_product_focus_generic_3_20b0ae0f7d/DEFA_Power_promotion_video_product_focus_generic_3_20b0ae0f7d.mp4)

DEFA Power – 22kW charging station with a 6-meter fixed cable and display is the smartest way to manage power, enabling end-users to charge at the lowest cost with maximum efficiency.

- Optimises the available power
- Manages all power and phase needs in all European markets
- Suitable for home charging
- Compatible with the DEFA Balancer (SKU E281)
- Connects via WiFi, 4/5G, or LAN. Additional costs for 4/5G, see DEFA Power Connectivity (EN) in Materials for more information.

DEFA Power

Defa Power 22kW

Power

**Function and Benefits:**

_Get Full Control of Your Electricity Consumption:_

Pulse reads the consumption for your entire home from your electricity meter up to every other second (see more in detailed specifications) and sends the data to the Tibber app via WiFi 2.4GHz.

Gain complete control over your home and its consumption, whether you're at home or on the go. With the help of Pulse and a bit of detective work, you can quickly identify which devices are the major consumers in your home.

_Smarter Electric Vehicle Charging:_

By combining your Tibber-connected Easee Home with a Pulse, you gain access to the features of smart charging and automatic load balancing – directly in the Tibber app.







**General:**

- Manufacturer: Tibber
- EFUEL's Article Number / SKU: E230

**Technical Information:**

- Electricity Meter Connection: RJ12
- Connectivity: WiFi 2.4 GHz b/g/n
- Sends Consumption: Every other second
- Sends Voltage: Every 10th second
- Sends Meter Reading: Every 10th minute/hour
- Cable Length: 1 m
- Cable Connection: RJ12
- Power Consumption: 175 mW
- Enclosure Rating: IP20 (not waterproof)
- Temperature Range: -20°C to +50°C

**Dimensions and Weight:**

- Dimensions: 33 x 80.5 x 24.5 mm
- Weight: 40 g

Tibber Pulse P1 is a smart real-time meter that measures your home's electricity consumption in real-time via the Tibber app. It is designed for the new electricity meters with a P1 port currently being rolled out in Sweden.

- Get a precise overview of electricity consumption in your entire home.
- Complement your charging station with Pulse P1 for automatic load balancing.
- Manufactured in Europe with carefully selected components.
- Compatible with charging stations **Easee, Zaptec, Charge Amps & Wallbox**

Tibber Pulse P1 is a smart real-time meter that measures your home's electricity consumption in real-time via the Tibber app. It is designed for the new electricity meters with a P1 port currently being rolled out in Sweden.

- Get a precise overview of electricity consumption in your entire home.
- Complement your charging station with Pulse P1 for automatic load balancing.
- Manufactured in Europe with carefully selected components.
- Compatible with charging stations from Zaptec, Easee & Wallbox

Tibber Pulse P1

Tibber - Pulse P1

Pulse P1

Before commissioning, you should undergo technical training for the product. You can register for the training on Zaptec's website via this link: https://zaptec.confetti.events/international

**General:**

- Manufacturer: Zaptec
- EFUEL's item number / SKU: E851
- Manufacturer's warranty: 5 years

**Technical Information:**

- Number of Phases: 1-phase & 3-phase
- Maximum Charging Power: 22 kW
- Cable or Socket: Socket
- IP Rating: IP54
- Built-in Energy Measurement: Yes
- Approved for Tax Deduction: Yes
- Residual Current Device: Built-in type B residual current device
- Manufactured in: Norway
- Brand: Zaptec
- RFID: Yes
- Adjustable Power: Yes
- Load Balancing: Yes, optional
- OCPP: Yes
- App Connection: Yes
- Connectivity: Yes WIFI & 4G






**Manualer:**

[User manual)](https://efuel-cdn.imgix.net/cms/ZAPTEC_Pro_User_Manual_02fe648b53/ZAPTEC_Pro_User_Manual_02fe648b53.pdf)



Zaptec Pro is a smart and efficient charging station for housing associations, companies, municipalities, shopping centers, and other organizations that offer private and public parking spaces.

- Including backplate
- Powerful 22kW charger
- Durable design adapted for our Nordic climate
- 4G to ensure continuous communication between charging stations
- Support for Plug & Charge (ISO15118)
- Suitable for home charging and housing association, villa, and company charging
- Compatible with load balancers Enegic Monitor - Zaptec (E290-291)

Zaptec Pro (incl. backplate)

Zaptec Pro 22kW - inklusive bakplatta

Pro (incl. backplate)

**General:**

- Manufacturer: Gacia
- Manufacturer's article number: 951050
- EFUEL's article number / SKU: E320
- EAN: 7350129020186

**Technical Information:**

- Standard: IEC/EN 61008-1 IEC/EN 62423
- Certificate: CE & KEMA
- Rated current(A): 16-32
- Frequency(Hz): 50/60
- Rated voltage(V): 230/400
- Breaking capacity(kA): 6kA
- Sensitivity(mA): 30mA
- Characteristic: C
- Leakage current type: A
- Operating temperature(C): -25…+40
- Storage temperature(C): -25…+70
- Protection class(IP): 20
- Modules: 4
- Tightening torque(Nm): 2.5
- Cable(mm²): 1-6
- Rail(mm²: 16
- Mechanical lifespan (electrical switching): 2000
- Mechanical lifespan (switching): 4000

**Product sheet:**

[Technical datasheet](https://efuel-cdn.imgix.net/cms/Datablad_RCBO_8804059c6e/Datablad_RCBO_8804059c6e.pdf)

Combined residual current circuit breaker and miniature circuit breaker that protects against both earth faults and overcurrents.

- Rated current: 16A-32A
- Tested and approved by KEMA-EUR
- CE marked

Please note that the supplier has made minor updates to the design of the product, and the images for C20 and C32 may differ from the product images. The functionality and other specifications remain the same.

Gacia RCBO PL8M4, 16-32A

Model and rated current

Gacia Gacia RCBO PL8M4, 16-32A

PL8M4 C16 (16A)

PL8M4 C20 (20A)

PL8M4 C25 (25A)

PL8M5 C32 (32A)

**Admin Account with Enegic:**

Keep in mind that as an installer, you need to acquire an Enegic partner account to be able to install, configure, and manage Enegic's products in the best way.

How do you get a Partner Account?
Fill in the form on Enegic's website – [link to the form](https://en.enegic.com/register-admin).

Included in the product bundle:

- 1x Energy Monitor Measurement Unit
- 3x Current Sensors 16mm or 36mm
- 1x USB Charger
- 1x Manual
- 1x License (universal)

**Enegic Monitor**

The Monitor enables real-time reading of power and energy consumption per phase. Monitor and analyze the current power in holiday homes, villas, housing cooperatives, or real estate portfolios with ease.

It is compatible with all types of properties regardless of electricity meters and is connected directly to the electrical system's phases. It is a professional system for measuring and controlling electricity consumers in the property.

- Solar Production Measurement
- Monitoring and controlling electric vehicle charging
- Scheduling
- Monitoring your power charge
- Multipoint Measurement
- Dynamic Load Balancing

**General:**

- Manufacturer: Enegic
- Warranty: 3 years according to the warranty rights

**Enegic 16mm:**

- EFUEL's item number / SKU: E351
- Manufacturer's item number: EM1-3D16LC-UP38-EVI

**Enegic 36mm:**

- EFUEL's item number / SKU: E352
- Manufacturer's item number: EM1-3D36LC-UP38-EVI

**Technical Information:**

- Network connection: WiFi 2.4 GHz, support for b/g/n
- Measurement of 3-phase currents up to 2500A (2.5kA)
- Multipoint measurement
- Local storage of measurement data during communication interruptions

**Dimensions and Weight:**

- Dimensions: 11cm x 5.9cm x 2.2cm
- Weight: 79g

**Product sheets:**

[Product sheet](https://efuel-cdn.imgix.net/cms/enegic_monitor_product_sheet_eng_b7a2d3f5e9/enegic_monitor_product_sheet_eng_b7a2d3f5e9.pdf)


**Discontinued product, replace with Prefix Max which you can find [here](https://www.efuel.eu/products/packages-load-balancing/perific-max-package-with-sensors)**

Enegic Monitor – EVI is a new version of Monitor with a general license, which means that an Enegic product is prepared to be installed with all charging boxes that are compatible with Enegic. The same advanced solution for dynamic power management of larger electricity consumers as before but now easier to stock and deploy.

This version of Enegic Monitor is compatible with:

- Charge Amps
- Easee
- Monta
- Wallbox
- Zaptec

Enegic Monitor – EVI is a new version of Monitor with a general license, which means that an Enegic product is prepared to be installed with all charging boxes that are compatible with Enegic. The same advanced solution for dynamic power management of larger electricity consumers as before but now easier to stock and deploy.

This version of Enegic Monitor is compatible with:

- Charge Amps
- Easee
- Monta
- Wallbox
- Zaptec

Enegic Monitor – EVI general license

Power adapter & size

Perific (Enegic) Monitor – EVI general license

Enegic Monitor - EVI (DIN or USB)

Monitor – EVI general license

Enegic Monitor EVI - 16mm (USB)

Enegic Monitor EVI - 36mm (USB)

Enegic Monitor EVI - 16mm (DIN)

Enegic Monitor EVI - 36mm (DIN)

Best sellers

**General:**

- Manufacturer: EFUEL


*Black:*

- EFUEL Part Number / SKU: E247 - E248


*White:*

- EFUEL's article number / SKU: Black E246

- Material: Black and white PVC



**Technical Information:**

- Frequency: 13.56MHz
- Chip: NXP MIFARE Classic 1K


**Dimensions and weight:**

- Size (mm): 45\*22

New black without logo delivered from v.5

EFUEL Mifare Classic RFID tag.

- Works with all charging stations compatible with Mifare Classic*(most common standard for RFID cards*)
- HEX code is registered on the back of the card for easy connection to operator services

New EFUEL Mifare Classic RFID tag. Smaller format than before and this works with all charging boxes compatible with Mifare Classic, it is the most common standard for RFID cards.

HEX code is registered on the back of the card for easy connection to operator services.

EFUEL Mifare Classic RFID tag

EFUEL Mifare Classic RFID Tag

**Product sheet:**

[Product sheet (En)](<https://efuel-cdn.imgix.net/cms/EU_Product_Sheet_Nex_Blue_Zen_Smart_meter_v1_3_pptx_a4d2828013/EU_Product_Sheet_Nex_Blue_Zen_Smart_meter_v1_3_pptx_a4d2828013.pdf>)

**Marketing material:**Find sales material [here](<https://drive.google.com/drive/folders/1DEl_gQFGK-_DjwkJud_cgDkAo8mPJGuJ?usp=drive_link>)

Product documentation

**Nexblue Zen (Smart Meter)** is an advanced solution for dynamic load balancing and solar surplus charging. It is ideal for homes with smart meters and can easily communicate with Nexblue chargers via Wi-Fi or radio frequency (Nexus RF) locally. With built-in Bluetooth, the load balancer can be easily configured and used without the need for Wi-Fi. Designed for simplicity, Nexblue Zen can be installed by an electrician or homeowner in seconds thanks to quick connection to the smart meter's HAN or P1 port. In addition, it is easily configured together with the charging box via the Nexblue Partner app.

- Quick and easy installation via the smart meter's HAN (RJ45) or P1 (RJ12) port.
- Protects against overloading the system and ensures dynamic charging.
- Uninterrupted communication through Nexus RF or Wi-Fi and Bluetooth for configuration.
- Charge with solar surplus if you have solar panels.
- No additional power source required.

Discover Nexblue Zen (Smart Meter) - a revolutionary solution for dynamic load balancing and solar surplus charging, perfect for homes with smart meters. With easy installation via the smart meter's HAN or P1 port. The Nexblue charger communicates via Wi-Fi, LAN, Nexus RF, the Nexblue Zen ensures efficient and uninterrupted energy management. Ideal for solar panel owners and equipped for quick installation in under four minutes. Easily configure via the Nexblue Partner App.

Nexblue Zen (Smart Meter)

Zen (Smart Meter)

Features and benefits:

**MID certified**
A MID certified EV charger designed to deliver accurate energy consumption measurements, clear bills and full control over charging costs. A reliable and efficient way to charge your EV!

**Fair fee and cost distribution**
The intelligent queue management system ensures charging without overloading the available power supply. When a charging station has multiple owners, you can keep track of each person's power consumption by registering their charging sessions with an RFID chip or via the Easee app.

**Always up to date**
The chargers are continuously updated with the latest features through Easee software updates. This way you know that you have purchased a reliable and future-proof product for your customer.

**Cost-effective and scalable**
Predictable and cost-effective installation. Configure and set up in just minutes. Load and phase balance up to three Easee chargers in one home.

**All-in-one charger**
The chargers support all EVs, phases and grids. This means customers don't have to worry about compatibility if they get a new electric car or upgrade their home electrical system.

**Powerful**
The chargers can charge up to 22 kW on 3-phase circuits with a Type 2 charging cable. Distributing the charging load across all 3 phases allows for faster charging when required.

**Reliable local control**
The Bluetooth feature allows the customer to control and monitor their chargers locally, without relying on cloud services or internet connection.

**Configuration**
Quick installation and configuration is done via the Easee Installer App by programming the backplate via NFC or Bluetooth technology.

**Functional design**
With award-winning Scandinavian design, the chargers are easy to use and house many practical features:

- Interchangeable charging unit that is easy to upgrade or replace when needed.
- The charger has a 45 degree angled type 2 socket which makes it self-draining and ensures that the cable protrudes less from the wall.
- Passive thermal cooling ensures maximum power without noisy fans.
- Charge Max is compatible with previous models, Easee Home and Charge Lite.

**General:**
- Manufacturer: Easee
- EFUEL part number / SKU: E800-801


**Technical information:**
- Dimensions (mm): H: 256 x W: 193 x D: 106.
- Wall mounting (mm): c/c H: 160 x W: 125.
- Operating temperature: -30 °C to +40 °C.
- Weight: 1,6 kg.
- Manufacturer's warranty: 5 years in accordance with Easee warranty procedures.
- Product number: 10233
- EAN: 7090052312087


**Sensors & indicators**
- Light strip to indicate the status of the charger.
- Touch button for manual adjustment.
- Temperature sensor in all main contacts.


**Connectivity:**
- Wi-Fi 2.4 GHz b/g/n.
- Bluetooth 4.2.
- Built-in LTE Cat M1. OCPP 1.6J.
- Easee LinkTM 868 MHz radio1.
- Built-in RFID/NFC reader for access control.
- Easee App for control and monitoring. Easee Control for charging management. Lock function and charging status with Apple Watch.


**Power supply and fuses:**
- Voltage: 3x 230 V / 400 V AC (±10%).
- Mains frequency: 50 Hz.
- Mains: TN, IT, TT.


**Charging power for Charge Max:**
- 1-phase: 1.4 kW (6 A) - 7.4 kW (32 A).
- TN 3-phase: 4.1 kW (6 A) - 22 kW (32 A).
- IT 3-phase: 2.4 kW (6 A) - 12.7 kW (32 A).
- Connection point: Type-2 socket (position 3). Load and phase balancing works offline. Automatic adaptation of charging speed based on available current2.
- Automatic phase balancing.
- Automatic solar charging2 Built-in energy meter MID class B (±1%) according to EN 50470-3.

**Installation:**
- Automatic detection of mains supply (TN, IT, TT).
- Circuit breaker: Max 40 A.
- Cable cross-section: up to 16 mm2 (single cable) / up to 10 mm2 (parallel connection).
- Cable diameter: 8-22 mm.
- Torque at connection: 5 Nm.
- Stripping length: 12 mm.


**Protection for connection point:**
- Overload protection according to EN IEC 61851- 1:2019.
- Integrated earth leakage circuit breaker type A 30 mA AC approved according to EN 60947-2, and 6 mA residual current device (RDC-DD) according to IEC 62955, 9.9.
- Dust/water: IP54 (backplate is IP22 without enclosure).
- Impact resistance: IK10
- Overvoltage category: III.
- Multiple sensors constantly monitor the charger to protect against any failure that could jeopardize safety.

**Product sheet:**

[Product sheet (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Max_Productsheet_6c143f5595/EN_Charge_Max_Productsheet_6c143f5595.pdf>)

**Manuals:**[Manual for installers (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Max_IG_V1_09_1abf8e471f/EN_Charge_Max_IG_V1_09_1abf8e471f.pdf>)

[Manual for end users (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Max_UG_V1_07_fc52cdf918/EN_Charge_Max_UG_V1_07_fc52cdf918.pdf>)

[Brochure (EN)](<https://efuel-cdn.imgix.net/cms/EN_Charge_Max_Brochure_6a7306361c/EN_Charge_Max_Brochure_6a7306361c.pdf>)

**Marketing material:**Find sales material for Easee Charge Max [here](<https://drive.google.com/drive/folders/1V74co7h3uP-a5vCT6EVKN26guhnv46Nl?usp=drive_link>)

Delivery for the black version during v.50. The white version during January.

**Easee Charge Max** is a MID-certified EV home charger designed to deliver accurate energy consumption measurements, clear bills and full control over charging costs. A reliable and efficient way to charge your electric car! The charger is intelligent and adapts to all electric vehicles, voltages and grids. reliable and future-proof EV chargers for your customers' home charging needs. Charge Max supports all EVs, phases and grids and delivers maximum available power. Its advanced smart safety features ensure safe charging, all the time.

- MID Class B accuracy, in accordance with EN 50470-3.
- Charge up to 22 kw
- Built-in earth leakage circuit breaker & DC protection
- Local load and phase balancing
- Dynamic load balancing via Easee Equalizer
- Easy installation

**Smart safety**
Safety is at the heart of everything Easee does. The charger is equipped with advanced temperature sensors, self-testing RCDs and provides you with critical fault notifications, meaning you are guaranteed safety and the latest features.

**The benefits**
- MID class B accuracy, in accordance with EN 50470-3.
- Automatic queuing system.
- Charge up to 22kW on 3-phase or 7.4kW on 1-phase.
- Integrated type A earth leakage circuit breaker (only fuse needed)
- Free 4G connection.
- Install up to three chargers on one circuit.
- Charger is continuously updated with the latest features.
- Easee Link™ Local load and phase balancing.
- Possibility to lock the type 2 cable.
- Integrated RFID reader
- Universal, fits all types of electric cars and power supplies.
- Full control with the Easee app or third-party integrations.
- Manufacturer's warranty: 5 years in accordance with Easee warranty procedure.

**Larger order? Request a quote via partner@efuel.se**

Easee Charge Max is a MID-certified EV home charger designed to deliver accurate energy consumption measurements, clear bills and full control over charging costs. A reliable and efficient way to charge your electric car! The charger is intelligent and adapts to all electric vehicles, voltages and grids. reliable and future-proof EV chargers for your customers' home charging needs. Charge Max supports all EVs, phases and grids and delivers maximum available power. Its advanced smart safety features ensure safe charging, all the time.

- MID Class B accuracy, in accordance with EN 50470-3.
- Charge up to 22 kw
- Built-in earth leakage circuit breaker & DC protection
- Dynamic load & phase balancing
- Easy installation

Easee Charge Max | Shop as an installer

Easee Charge Max

Charge Max

Really easy installation:

CHARGESTORM® CONNECTED is designed for easy installation and great user experience. CC3 is updated on several points with you as an installer in mind, both communication and power cables can be sewn inside the unit which reduces both installation time and cost. Maximum cable area to the charging box is 25mm2. The cable harness is connected from below or from behind via pre-punched holes.

Mounting and connection:

CC3 can easily be mounted on a wall with only 4 screws. It can also be mounted on a standard 60mm pole by attaching the mounting plate to the back of the CC3.

Quality guaranteed with CTEK:

Quality is at the heart of everything CTEK does, safety, simplicity and flexibility are the hallmarks of all our products and solutions. CTEK is a leader in battery management solutions and supplies products to more than 70 countries worldwide. CTEK is also a trusted subcontractor to many of the world's most respected car and motorcycle manufacturers.

**General:**
- Manufacturer: CTEK
- EFUEL part number / SKU:
CTEK CC3 Single socket: E674
CTEK CC3 Double socket: 675
- Manufacturer warranty: 5 years


**Technical Information:**
- Version: 3
- Charging category: AC charging
- Operating temperature: -30 °C to +50 °C
- Locking motor (type 2 socket: )Yes
- Charging current: 32 A
- Sockets: One or two type 2 sockets; Schuko; One or two T2S sockets
- Authentication: RFID, App
- Load Balancing: Includes load balancing (NANOGRID™ Internal) between dual sockets on EVSE, option for other load balancing solutions between multiple devices (NANOGRID™ HOME, NANOGRID™ AIR, NANOGRID™ CGC)
- Number of phases: 3-phase
- Schuko sockets: Type E/Type F
- Communication protocol: OCPP 1.6/OCPP 2.0.1
- Approval: Download the Declaration of Conformity from WWW.CTEK.COM
- Energy metersMID approved; Current transformers; Eichrecht
- Electrical connection: up to 25 mm 2 connection terminals
- Frequency50 Hz
- Connections: 4G (optional); 2 x Ethernet; Wi-Fi
- Relative humidity: Up to 100% at 25°C
- Color cover plastic part: Black
- Compliance: RED; IEC 62196; CE; IEC 61851-1
- Cover material: Plastic; Metal
- Cover closure: Key
- Rated voltage: (in)400 V
- Earth fault detection: Built-in earth fault detection, 30 mA AC, 6 mA DC
- Earth fault reset: Semi-automatic
- RFID reader: Yes
- RFID tag: standard ISO15693, ISO14443A (MIFARE)
- Enclosure class: IP54
- Impact resistance: IK10
- Cover dimensions (L x W x H): 160 x 282 x 449 mm
- App support: Taking Charge App for Android and IOS (requires EVSE to be connected to the Charge portal cloud service)
- User interface: LED symbols
- Weight: Up to 24 kg
- Internal fuse: 32 A per socket
- Rated power: Up to 22 kW
- Charging capacity: 22 kW
- Cyber security: Yes
- ISO: 1511815118-2 EIM
- Serial connection: Network; Power


Reservation: All products and product specifications are subject to change without notice, due to improvements in reliability, function or design. In the event of a manufacturing defect, CTEK reserves the right to inspect the product to confirm the defect. All CTEK products are covered by standard warranty terms.

**Product sheet:**

[Product sheet single socket (EN)](<https://efuel-cdn.imgix.net/cms/CHARGESTORM_CONNECTED_40_645_productsheet_low_UK_EN_2622c7d7c9/CHARGESTORM_CONNECTED_40_645_productsheet_low_UK_EN_2622c7d7c9.pdf>)

[Double socket product sheet (SE)](<https://efuel-cdn.imgix.net/cms/CHARGESTORM_CONNECTED_3_productsheet_low_UK_EN_7d22805725/CHARGESTORM_CONNECTED_3_productsheet_low_UK_EN_7d22805725.pdf>)

**Marketing material:**
Find sales material [here](<https://drive.google.com/drive/folders/155YKBaGjqg8n1J_ltsE7TbUgKi7o8K6O?usp=drive_link>)

**Future-proof EV charging built for the future**
CC3 is available with one or two sockets. The charging power is always up to 22kW. CC3 is cyber security tested and detects if it is opened to minimize manipulation. CC3 can be connected in several ways, such as; Wi-Fi, LAN or 4G (option). Our scalable load balancing NANOGRID can now also be done wirelessly via Wi-Fi. Load balancing via fixed cabling is of course also available as an option. CC3 is compatible with various third-party backend systems via OCPP 2.0.1 and is prepared for 'Plug & Charge' and Vehicle-to-grid (V2G).

**Features and functions**
- Up to 2x22 kW charging power with single or dual Type 2 sockets/charging cables
- Internet access to backend systems via Wi-Fi, LAN or 4G (option)
- Prepared for next generation charging services such as 'Plug & Charge' and 'V2G', based on ISO15118 and OCPP 2.0.1 communication protocols
- IK10/IP54
- Serialization of power and network cabling for easier and faster installations
- Wall or pole mounting
- 5 years warranty

**Larger orders? Request a quote via partner@efuel.se**

The CTEK CC3 is available with one or two sockets. The charging power is always up to 22kW. The CC3 is cyber security tested and detects if it is opened to minimize manipulation. CC3 can be connected in several ways, such as; Wi-Fi, LAN or 4G (option). Our scalable load balancing NANOGRID can now also be done wirelessly via Wi-Fi. Load balancing via fixed cabling is of course also available as an option. CC3 is compatible with various third-party backend systems via OCPP 2.0.1 and is prepared for 'Plug & Charge' and Vehicle-to-grid (V2G).

**Features**
- Up to 2x22 kW charging power with single or dual Type 2 sockets/charging cables
- Internet access to backend systems via Wi-Fi, LAN or 4G (option)
- Prepared for next generation charging services such as 'Plug & Charge' and 'V2G', based on ISO15118 and OCPP 2.0.1 communication protocols
- IK10/IP54
- Serialization of power and network cabling for easier and faster installations
- Wall or pole mounting

**Larger order? Request a quote via partner@efuel.se**

CTEK Chargestorm Connected 3 | Become a Reseller

Antal Uttag

CTEK Chargestorm Connected 3

Chargestorm Connected 3

CTEK CC3 Ett uttag

CTEK CC3 Dubbla Uttag

Product news

EFUEL is a distributor of electric vehicle chargers, accessories and related products and offers solutions for home, facility and business charging. We sell to retailers and installers. As a business customer at EFUEL, you get access to leading products, services and support within electric vehicle charging. Become an EFUEL customer today and get access to a product range from players such as DEFA, Easee, Perific (Enegic), ONEPOLE, Charge Amps, CTEK, Tibber, Gacia, Wallbox, Zaptec, Nexblue, Amina and Futurehome and more.

Charge Amps Luna

CTEK CC3

Hear directly from our business customers!

Popular categories

Best sellers

Easee

Charge Core

Easee

Charge Up

Charge Amps

Aura (RCD)

Nexblue

Edge + Zen (Smart Meter)

Product news

EFUEL

Mifare Classic RFID tag

Nexblue

Zen (Smart Meter)

Easee

Charge Max

CTEK

Chargestorm Connected 3

We offer products from leading brands

Latest news

EFUEL is now an official distributor of CTEK

Easee Charge Core gets certified by TÜV

Everything you need to know about Enegic: The installer's guide

Wallbox announces a new DC charger – Supernova

Get started today
